Blocks phantom power, not the signal.

Protect your gear with Phantom Blocker. Safely block phantom power, keeping your audio signal clean. Ideal for microphones, preamps, and balanced device outputs. Easy setup, reliable defense.

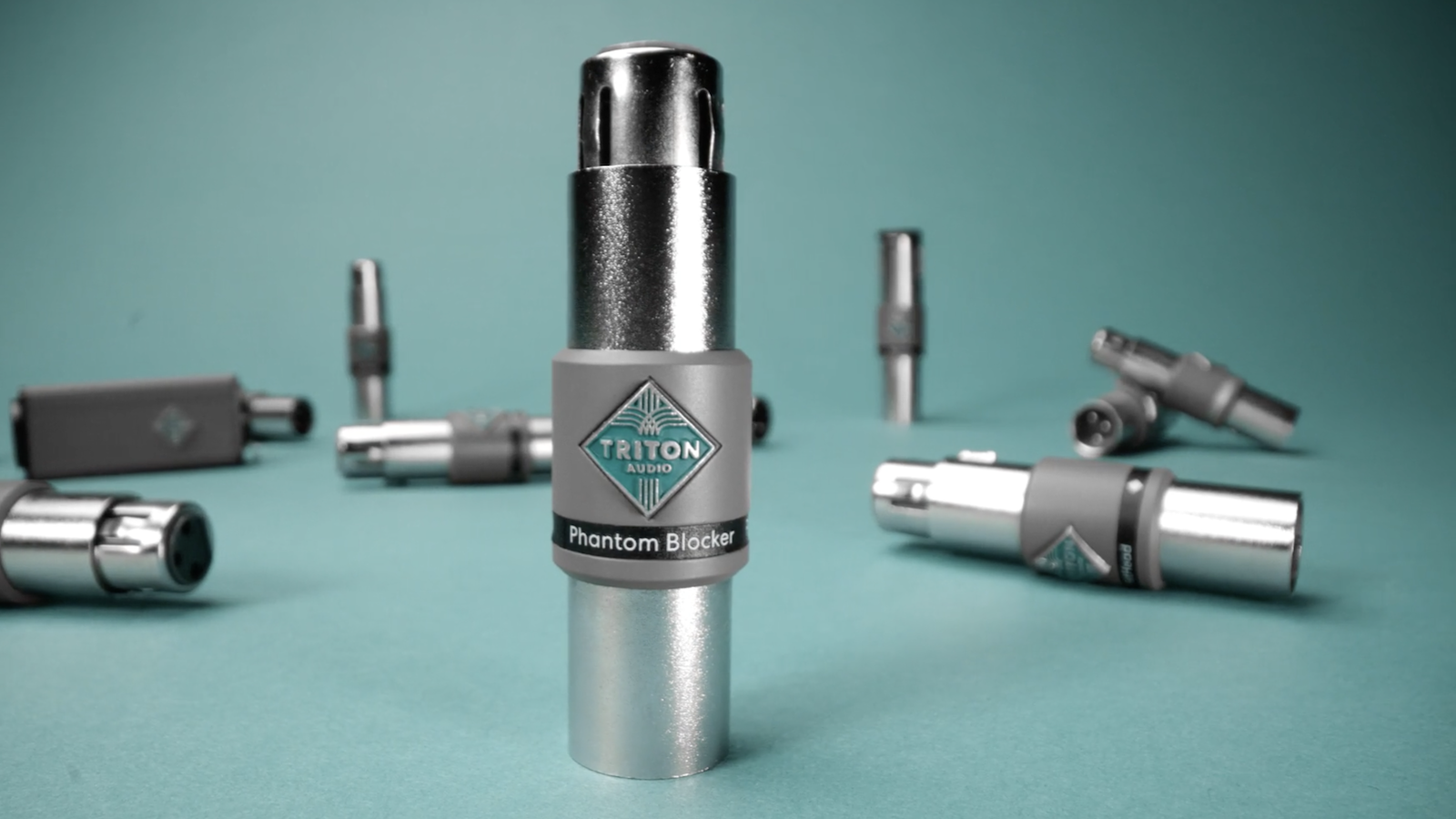

Phantom Blocker

Blocks P48 phantom power
Phantom blocker blocks phantom power while leaving the audio signal intact. Phantom power can be applied to either the male or the female side of phantom blocker’s XLR connector and will not reach the opposing XLR connector, the audio signal travels without restriction in both directions

Before you connect the device you wish to shield from phantom power, make sure your phantom blocker is attached to the cable and have phantom power engaged. Wait 5 seconds, during which phantom blockers internal bleeder resistors will cancel out voltage differences. Connecting in this order prevents the transfer of an initial AC voltage burst created by the phantom power switching on.

Recommended applications

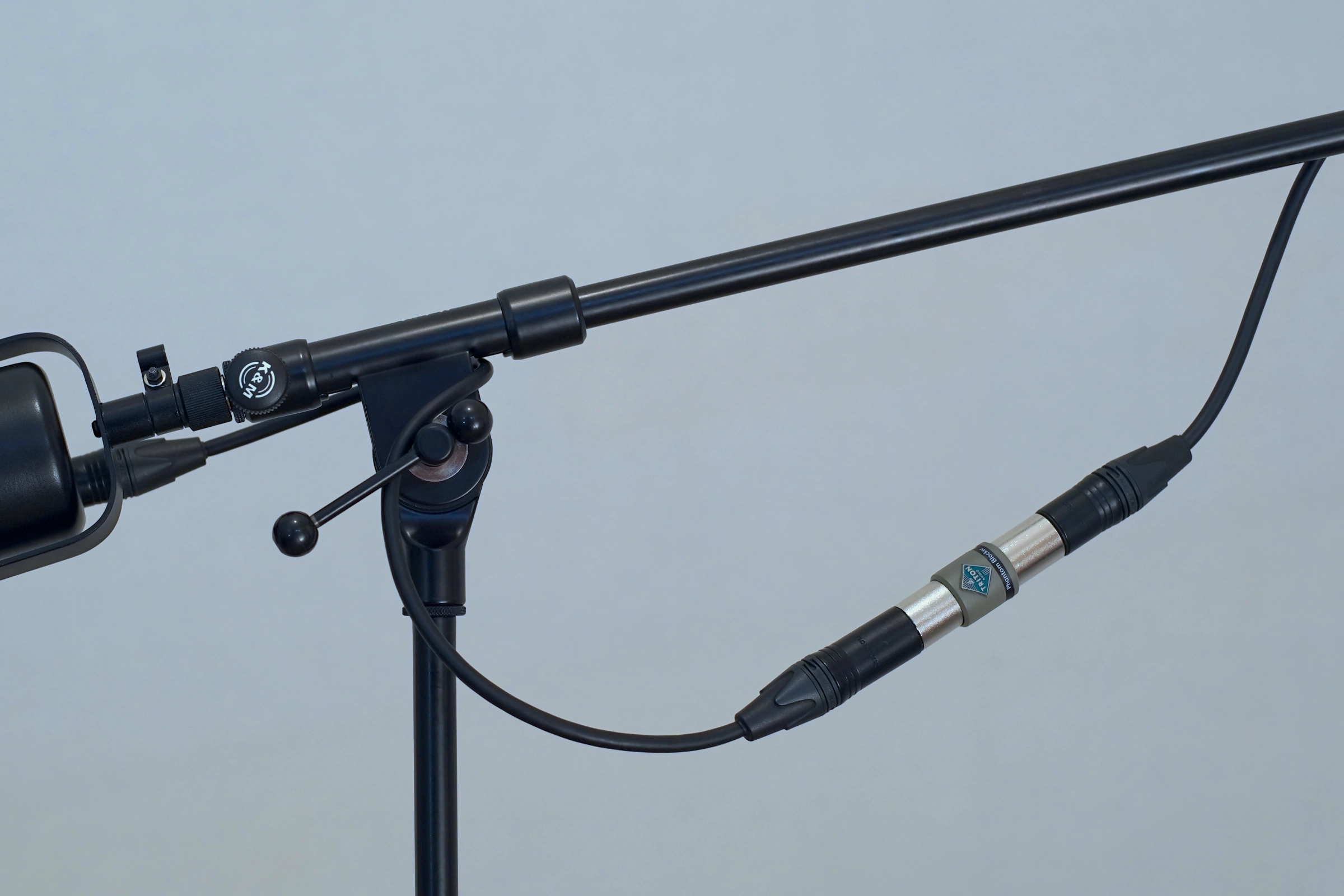

• Microphones
There are microphones (mainly ribbon microphones) which do not tolerate phantom power. We advise to use our FetHead to add clean gain and protect your ribbon microphone against phantom power.
• Microphone preamps
Some (vintage) preamps are sensitive for phantom power at the input. The preamp’s input transformer cannot handle phantom power from another source.
• Unbalanced TRS to XLR cables
When connecting an unbalanced TRS to XLR cable, pin 3 of the XLR connector is directly connected to ground, creating a short, this can damage input transformers and under dimensioned phantom power circuits.
• Balanced device outputs
Our phantom blocker is a great solution to protect the output of any device connected to the XLR input of a mixing desk or preamp which has phantom power switched on, e.g. your computers audio interface.


  • Protects microphones
  • Protects device outputs
  • Anything else you wish to protect from phantom power
  • Balanced XLR input/output
  • height: 3” / 76mm
  • width: Ø 0,86” / 22mm
  • weight: 55 g
